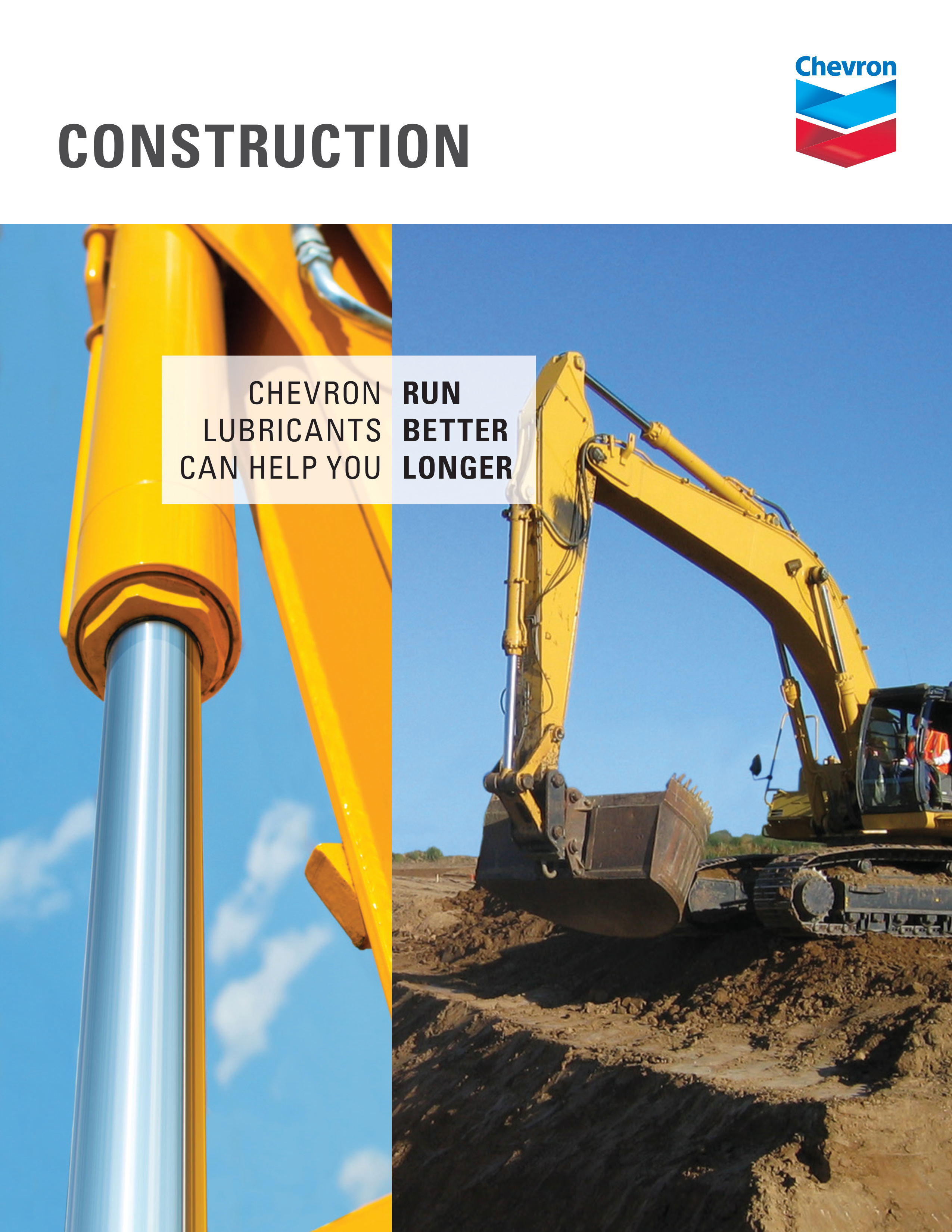

Chevron Construction Lubricants Brochure — page 1

CONSTRUCTION

RUN

BETTER

LONGER

CHEVRON

LUBRICANTS

CAN HELP YOU

CONSTRUCTION INDUSTRY

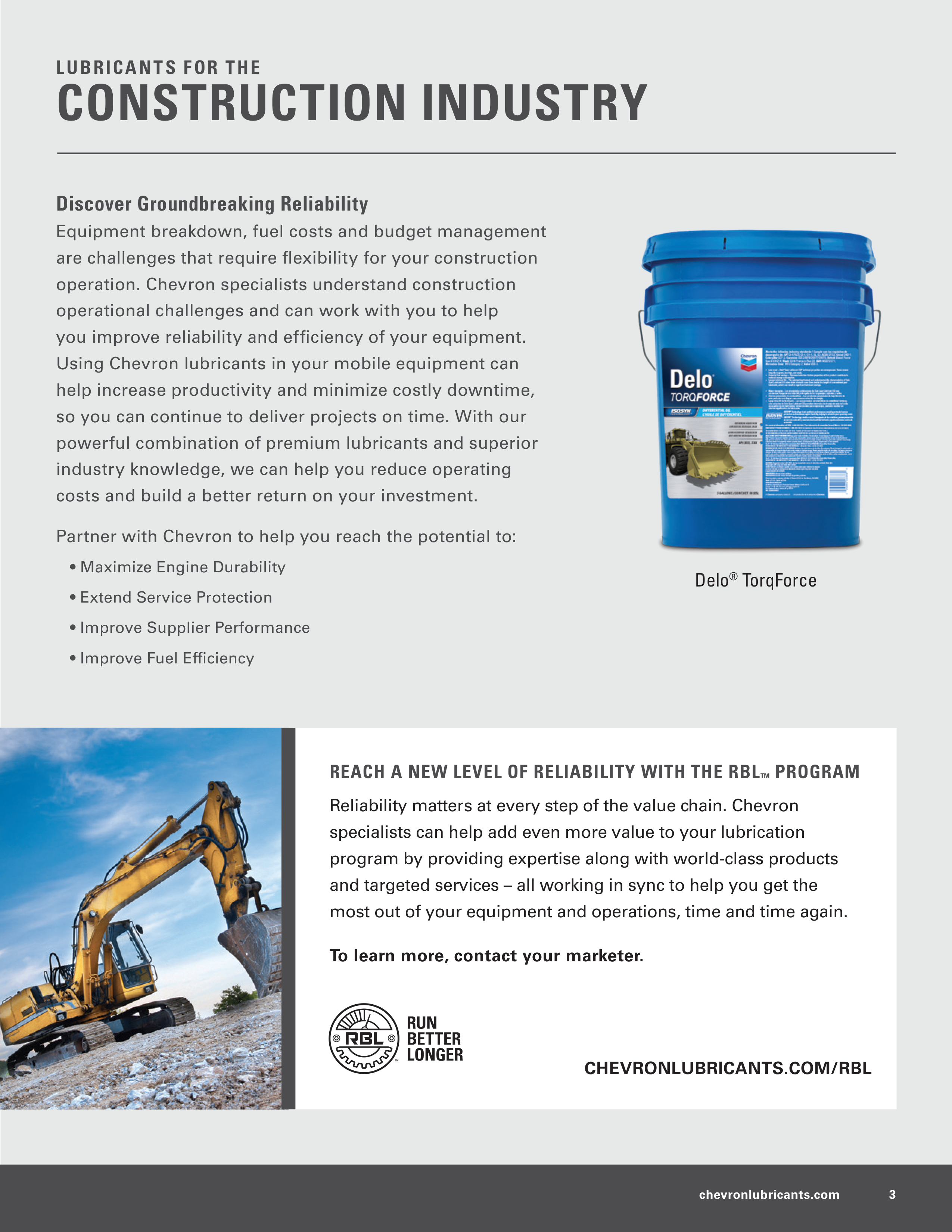

Chevron Construction Lubricants Brochure — page 3

Discover Groundbreaking Reliability

Equipment breakdown, fuel costs and budget management

are challenges that require flexibility for your construction

operation. Chevron specialists understand construction

operational challenges and can work with you to help

you improve reliability and efficiency of your equipment.

Using Chevron lubricants in your mobile equipment can

help increase productivity and minimize costly downtime,

so you can continue to deliver projects on time. With our

powerful combination of premium lubricants and superior

industry knowledge, we can help you reduce operating

costs and build a better return on your investment.

Partner with Chevron to help you reach the potential to:

• Maximize Engine Durability

• Extend Service Protection

• Improve Supplier Performance

• Improve Fuel Efficiency

CONSTRUCTION INDUSTRY

LUBRICANTS FOR THE

REACH A NEW LEVEL OF RELIABILITY WITH THE RBL

™

PROGRAM

Reliability matters at every step of the value chain. Chevron

specialists can help add even more value to your lubrication

program by providing expertise along with world-class products

and targeted services – all working in sync to help you get the

most out of your equipment and operations, time and time again.

To learn more, contact your marketer.

CHEVRONLUBRICANTS.COM/RBL

Delo

TorqForce

chevronlubricants.com

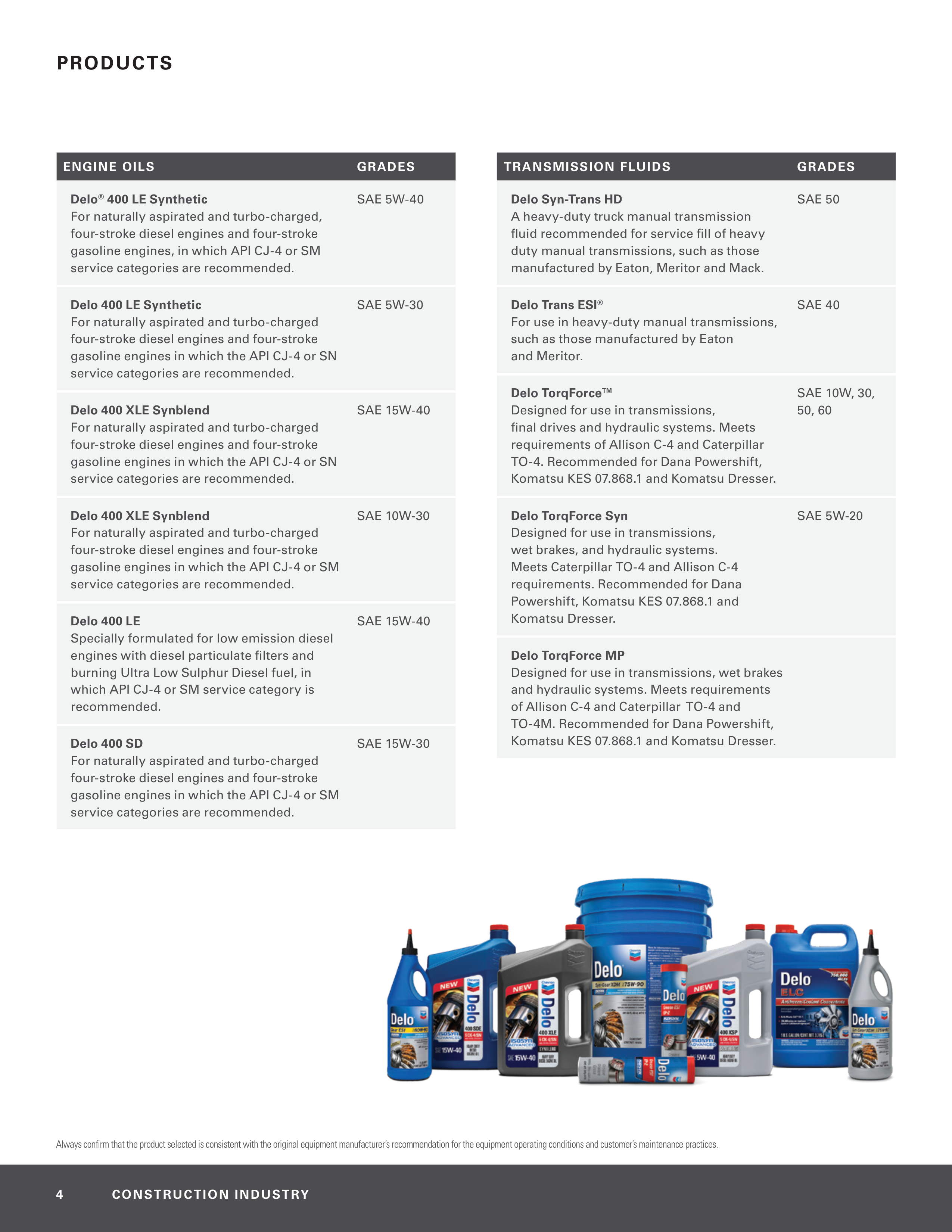

Chevron Construction Lubricants Brochure — page 4

TRANSMISSION FLUIDS

GRADES

Delo Syn-Trans HD

A heavy-duty truck manual transmission

fluid recommended for service fill of heavy

duty manual transmissions, such as those

manufactured by Eaton, Meritor and Mack.

SAE 50

Delo Trans ESI

For use in heavy-duty manual transmissions,

such as those manufactured by Eaton

and Meritor.

SAE 40

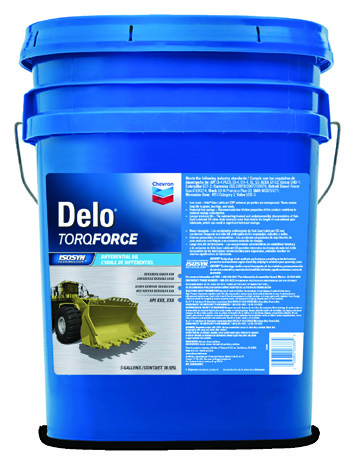

Delo TorqForce™

Designed for use in transmissions,

final drives and hydraulic systems. Meets

requirements of Allison C-4 and Caterpillar

TO-4. Recommended for Dana Powershift,

Komatsu KES 07.868.1 and Komatsu Dresser.

SAE 10W, 30,

50, 60

Delo TorqForce Syn

Designed for use in transmissions,

wet brakes, and hydraulic systems.

Meets Caterpillar TO-4 and Allison C-4

requirements. Recommended for Dana

Powershift, Komatsu KES 07.868.1 and

Komatsu Dresser.

SAE 5W-20

Delo TorqForce MP

Designed for use in transmissions, wet brakes

and hydraulic systems. Meets requirements

of Allison C-4 and Caterpillar TO-4 and

TO-4M. Recommended for Dana Powershift,

Komatsu KES 07.868.1 and Komatsu Dresser.

ENGINE OILS

GRADES

Delo

400 LE Synthetic

For naturally aspirated and turbo-charged,

four-stroke diesel engines and four-stroke

gasoline engines, in which API CJ-4 or SM

service categories are recommended.

SAE 5W-40

Delo 400 LE Synthetic

For naturally aspirated and turbo-charged

four-stroke diesel engines and four-stroke

gasoline engines in which the API CJ-4 or SN

service categories are recommended.

SAE 5W-30

Delo 400 XLE Synblend

For naturally aspirated and turbo-charged

four-stroke diesel engines and four-stroke

gasoline engines in which the API CJ-4 or SN

service categories are recommended.

SAE 15W-40

Delo 400 XLE Synblend

For naturally aspirated and turbo-charged

four-stroke diesel engines and four-stroke

gasoline engines in which the API CJ-4 or SM

service categories are recommended.

SAE 10W-30

Delo 400 LE

Specially formulated for low emission diesel

engines with diesel particulate filters and

burning Ultra Low Sulphur Diesel fuel, in

which API CJ-4 or SM service category is

recommended.

SAE 15W-40

Delo 400 SD

For naturally aspirated and turbo-charged

four-stroke diesel engines and four-stroke

gasoline engines in which the API CJ-4 or SM

service categories are recommended.

SAE 15W-30

Always confirm that the product selected is consistent with the original equipment manufacturer’s recommendation for the equipment operating conditions and customer’s maintenance practices.

CONSTRUCTION INDUSTRY

PRODUCTS

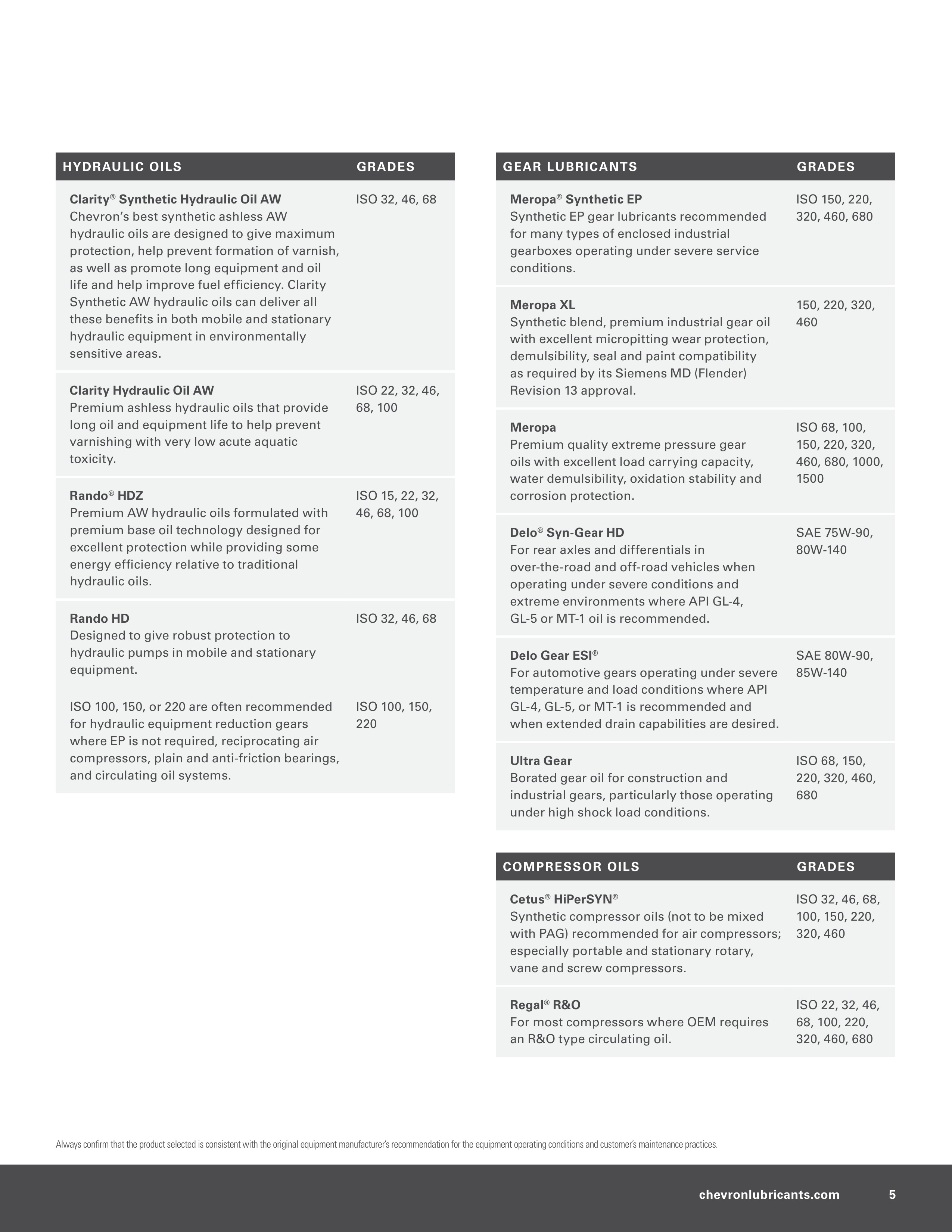

Chevron Construction Lubricants Brochure — page 5

GEAR LUBRICANTS

GRADES

Meropa

Synthetic EP

Synthetic EP gear lubricants recommended

for many types of enclosed industrial

gearboxes operating under severe service

conditions.

ISO 150, 220,

320, 460, 680

Meropa XL

Synthetic blend, premium industrial gear oil

with excellent micropitting wear protection,

demulsibility, seal and paint compatibility

as required by its Siemens MD (Flender)

Revision 13 approval.

150, 220, 320,

460

Meropa

Premium quality extreme pressure gear

oils with excellent load carrying capacity,

water demulsibility, oxidation stability and

corrosion protection.

ISO 68, 100,

150, 220, 320,

460, 680, 1000,

1500

Delo

Syn-Gear HD

For rear axles and differentials in

over-the-road and off-road vehicles when

operating under severe conditions and

extreme environments where API GL-4,

GL-5 or MT-1 oil is recommended.

SAE 75W-90,

80W-140

Delo Gear ESI

For automotive gears operating under severe

temperature and load conditions where API

GL-4, GL-5, or MT-1 is recommended and

when extended drain capabilities are desired.

SAE 80W-90,

85W-140

Ultra Gear

Borated gear oil for construction and

industrial gears, particularly those operating

under high shock load conditions.

ISO 68, 150,

220, 320, 460,

680

COMPRESSOR OILS

GRADES

Cetus

HiPerSYN

Synthetic compressor oils (not to be mixed

with PAG) recommended for air compressors;

especially portable and stationary rotary,

vane and screw compressors.

ISO 32, 46, 68,

100, 150, 220,

320, 460

Regal

R&O

For most compressors where OEM requires

an R&O type circulating oil.

ISO 22, 32, 46,

68, 100, 220,

320, 460, 680

HYDRAULIC OILS

GRADES

Clarity

Synthetic Hydraulic Oil AW

Chevron’s best synthetic ashless AW

hydraulic oils are designed to give maximum

protection, help prevent formation of varnish,

as well as promote long equipment and oil

life and help improve fuel efficiency. Clarity

Synthetic AW hydraulic oils can deliver all

these benefits in both mobile and stationary

hydraulic equipment in environmentally

sensitive areas.

ISO 32, 46, 68

Clarity Hydraulic Oil AW

Premium ashless hydraulic oils that provide

long oil and equipment life to help prevent

varnishing with very low acute aquatic

toxicity.

ISO 22, 32, 46,

68, 100

Rando

HDZ

Premium AW hydraulic oils formulated with

premium base oil technology designed for

excellent protection while providing some

energy efficiency relative to traditional

hydraulic oils.

ISO 15, 22, 32,

46, 68, 100

Rando HD

Designed to give robust protection to

hydraulic pumps in mobile and stationary

equipment.

ISO 32, 46, 68

ISO 100, 150, or 220 are often recommended

for hydraulic equipment reduction gears

where EP is not required, reciprocating air

compressors, plain and anti-friction bearings,

and circulating oil systems.

ISO 100, 150,

220

Always confirm that the product selected is consistent with the original equipment manufacturer’s recommendation for the equipment operating conditions and customer’s maintenance practices.

chevronlubricants.com

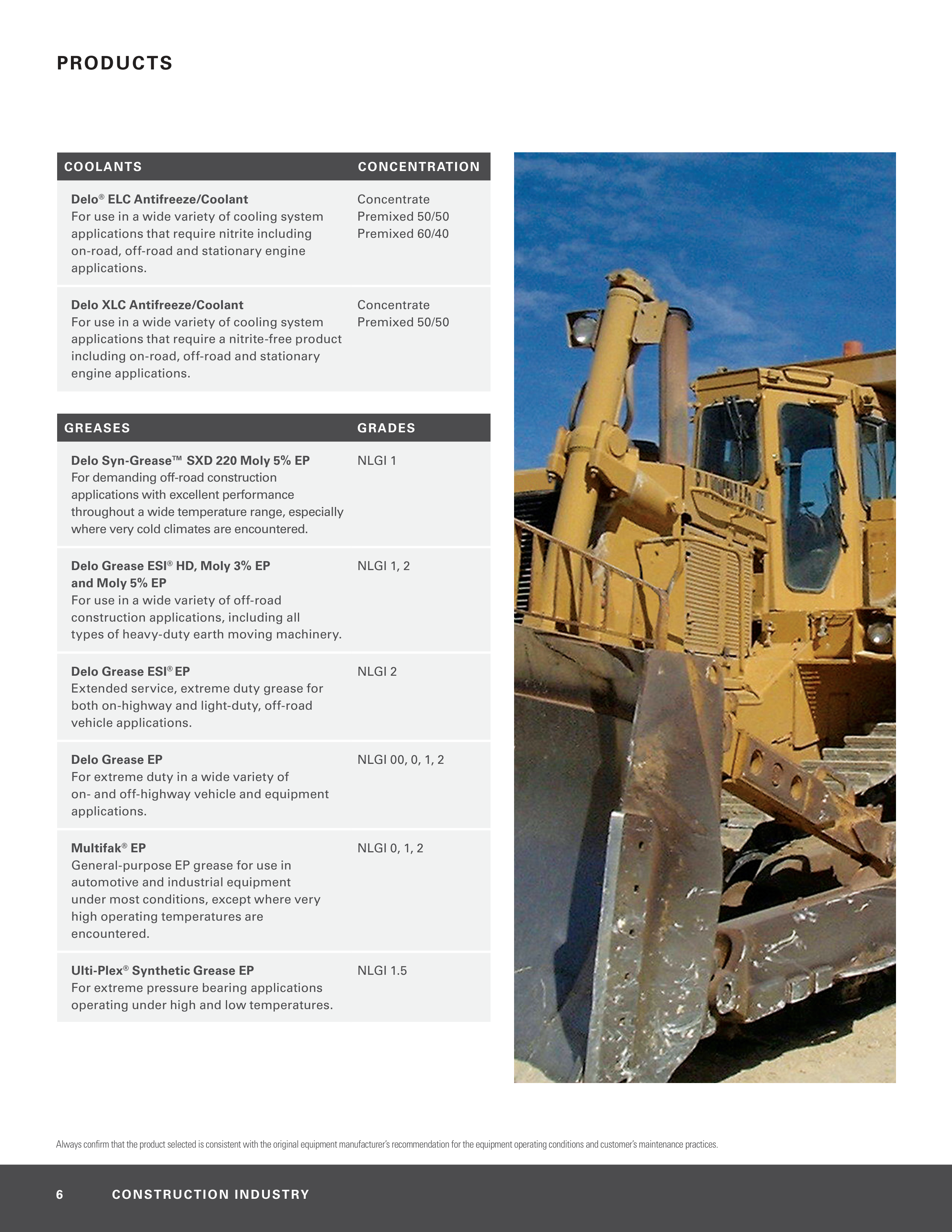

Chevron Construction Lubricants Brochure — page 6

COOLANTS

CONCENTRATION

Delo

ELC Antifreeze/Coolant

For use in a wide variety of cooling system

applications that require nitrite including

on-road, off-road and stationary engine

applications.

Concentrate

Premixed 50/50

Premixed 60/40

Delo XLC Antifreeze/Coolant

For use in a wide variety of cooling system

applications that require a nitrite-free product

including on-road, off-road and stationary

engine applications.

Concentrate

Premixed 50/50

GREASES

GRADES

Delo Syn-Grease™ SXD 220 Moly 5% EP

For demanding off-road construction

applications with excellent performance

throughout a wide temperature range, especially

where very cold climates are encountered.

NLGI 1

Delo Grease ESI

HD, Moly 3% EP

and Moly 5% EP

For use in a wide variety of off-road

construction applications, including all

types of heavy-duty earth moving machinery.

NLGI 1, 2

Delo Grease ESI

Extended service, extreme duty grease for

both on-highway and light-duty, off-road

vehicle applications.

NLGI 2

Delo Grease EP

For extreme duty in a wide variety of

on- and off-highway vehicle and equipment

applications.

NLGI 00, 0, 1, 2

Multifak

General-purpose EP grease for use in

automotive and industrial equipment

under most conditions, except where very

high operating temperatures are

encountered.

NLGI 0, 1, 2

Ulti-Plex

Synthetic Grease EP

For extreme pressure bearing applications

operating under high and low temperatures.

NLGI 1.5

Always confirm that the product selected is consistent with the original equipment manufacturer’s recommendation for the equipment operating conditions and customer’s maintenance practices.

CONSTRUCTION INDUSTRY

PRODUCTS

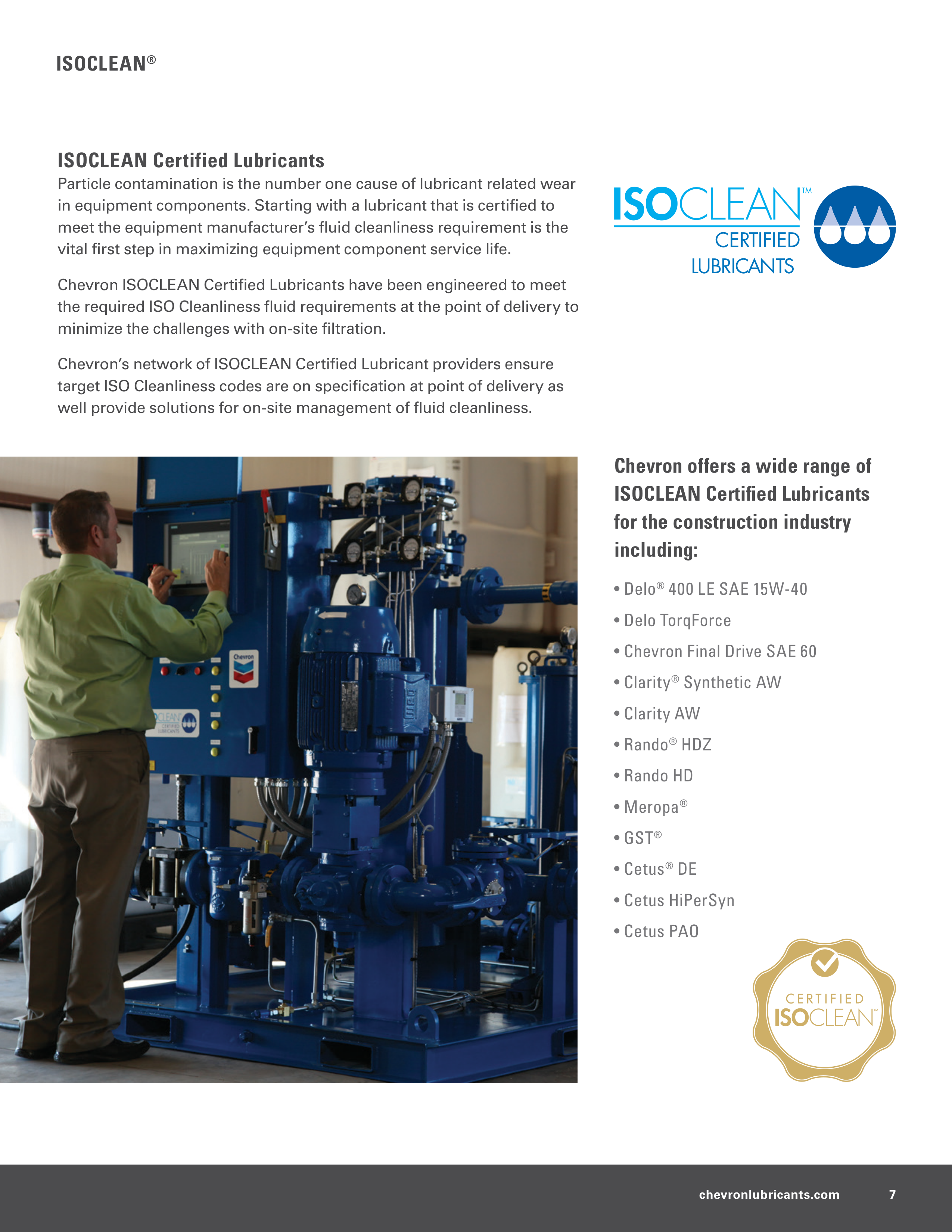

Chevron Construction Lubricants Brochure — page 7

ISOCLEAN Certified Lubricants

Particle contamination is the number one cause of lubricant related wear

in equipment components. Starting with a lubricant that is certified to

meet the equipment manufacturer’s fluid cleanliness requirement is the

vital first step in maximizing equipment component service life.

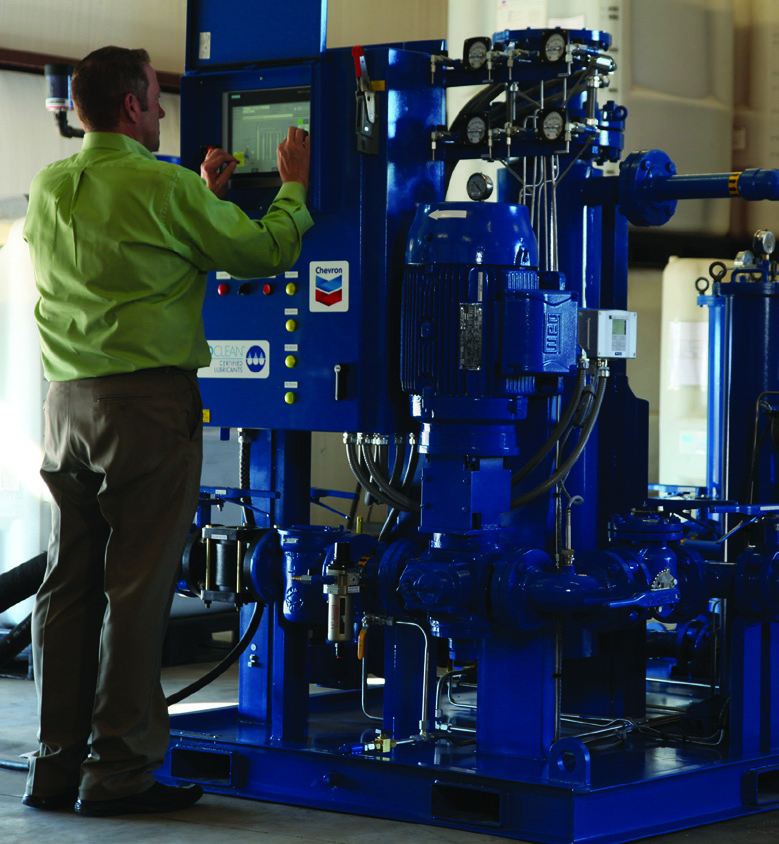

Chevron ISOCLEAN Certified Lubricants have been engineered to meet

the required ISO Cleanliness fluid requirements at the point of delivery to

minimize the challenges with on-site filtration.

Chevron’s network of ISOCLEAN Certified Lubricant providers ensure

target ISO Cleanliness codes are on specification at point of delivery as

well provide solutions for on-site management of fluid cleanliness.

CERTIFIED

LUBRICANTS

Chevron offers a wide range of

ISOCLEAN Certified Lubricants

for the construction industry

including:

• Delo

400 LE SAE 15W-40

• Delo TorqForce

• Chevron Final Drive SAE 60

• Clarity

Synthetic AW

• Clarity AW

• Rando

HDZ

• Rando HD

• Meropa

• GST

• Cetus

• Cetus HiPerSyn

• Cetus PAO

chevronlubricants.com

ISOCLEAN

chevronlubricants.com

Chevron

company product

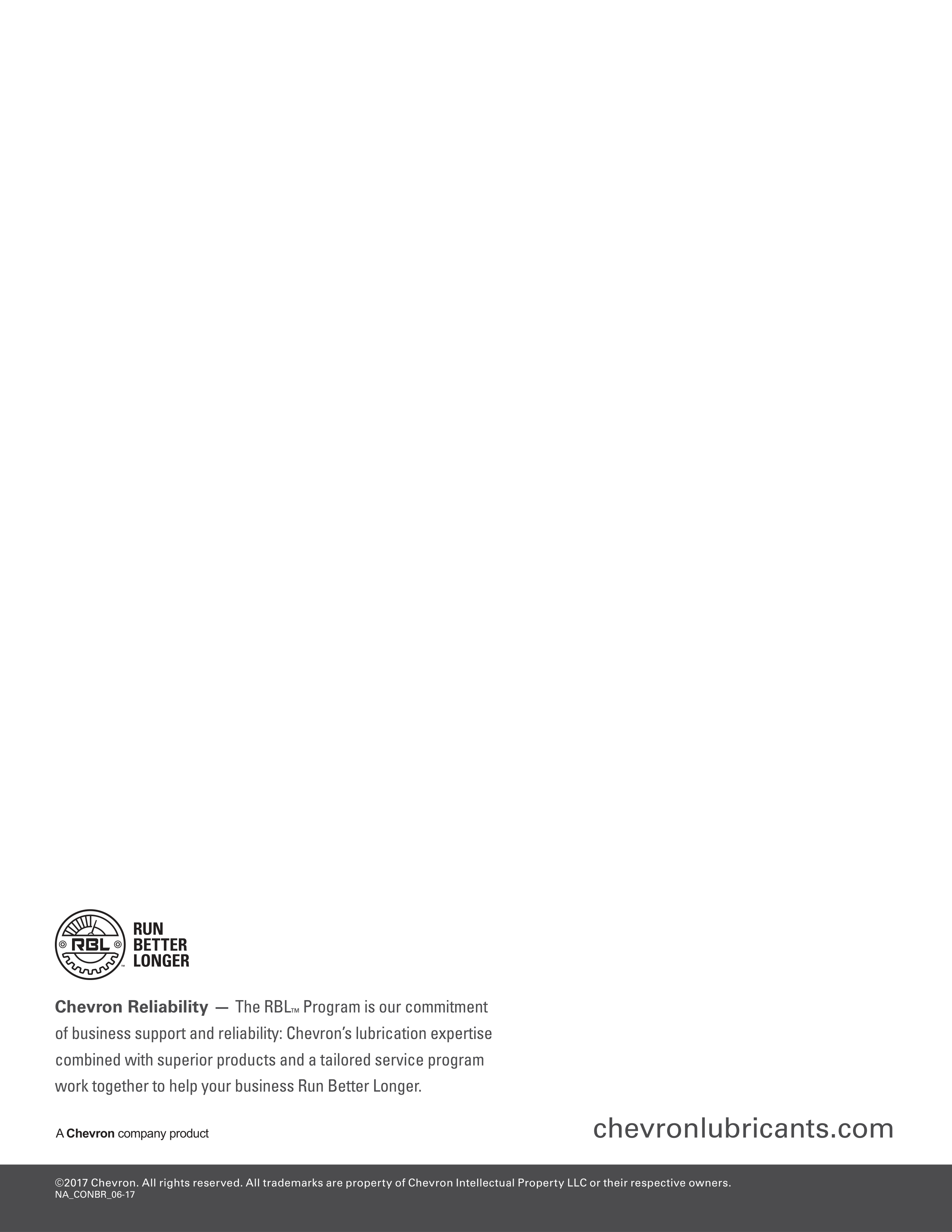

Chevron Reliability —

The RBL

™

Program is our commitment

of business support and reliability: Chevron’s lubrication expertise

combined with superior products and a tailored service program

work together to help your business Run Better Longer.

NA_CONBR_06-17

Chevron Construction Lubricants Brochure

Prompt to Clone This Chevron Construction Lubricants Brochure

Apply this example's core structure, strategic pacing, and structural hierarchy directly to your own topic.

What are you generating today?

ADM Sustainable Agriculture Brochure

Boeing Airport Compatibility Brochure

Morgan Stanley Wealth Management Brochure

Pfizer Worldwide R&D Brochure

IBM Software Technology Brochure

IBM Spatial Services Brochure

Cisco Cloud Network Management Brochure

Oracle High Tech Industry Brochure

NVIDIA Virtual Graphics Brochure

Qualcomm Corporate Overview Brochure

Adobe PDF Print Engine Brochure

Salesforce AI Solutions Brochure

ServiceNow Business Strategy Brochure

Visa Debit Solutions Brochure

MasterCard Spend Management Brochure

John Deere PowerTech Series Brochure

Honeywell Industrial Sensors Brochure

Autodesk AutoCAD Brochure

Seagate Partner Program Brochure

Micron Data Center Solutions Brochure

Apple Macintosh 128 Brochure

Chevron Campus Recruitment Brochure

Cardinal Health Fluid Management Suction Brochure

Cardinal Health Paper Products Brochure

Ford F-150 Pickup Truck Brochure

Ford Bronco Brochure

Dell AI Solutions Brochure

Intel Partner Alliance Program Brochure

Similar Examples
