°C
°F
COMPARTMENT & VEHICLES
SAE GRADE
MIN.
MAX.
MIN.
MAX.
Differentials and Final Drives
of Off-Highway Trucks and Tractors
60
*
50
*
122
*PowerDrive 6000 (SAE 60) is preferred in most applications, particularly with continuous operation. If the ambient temperature is below -10°C (14°F), the oil should be warmed
up prior to operation (see Caterpillar Operation and Maintenance Manual, “Differential Warm-Up and Break-In”). If the ambient temperature is below -25° C (-13°F), consult your
Lube Engineer for instructions. Failure to warm up the oil prior to operation will cause damage to the machine.

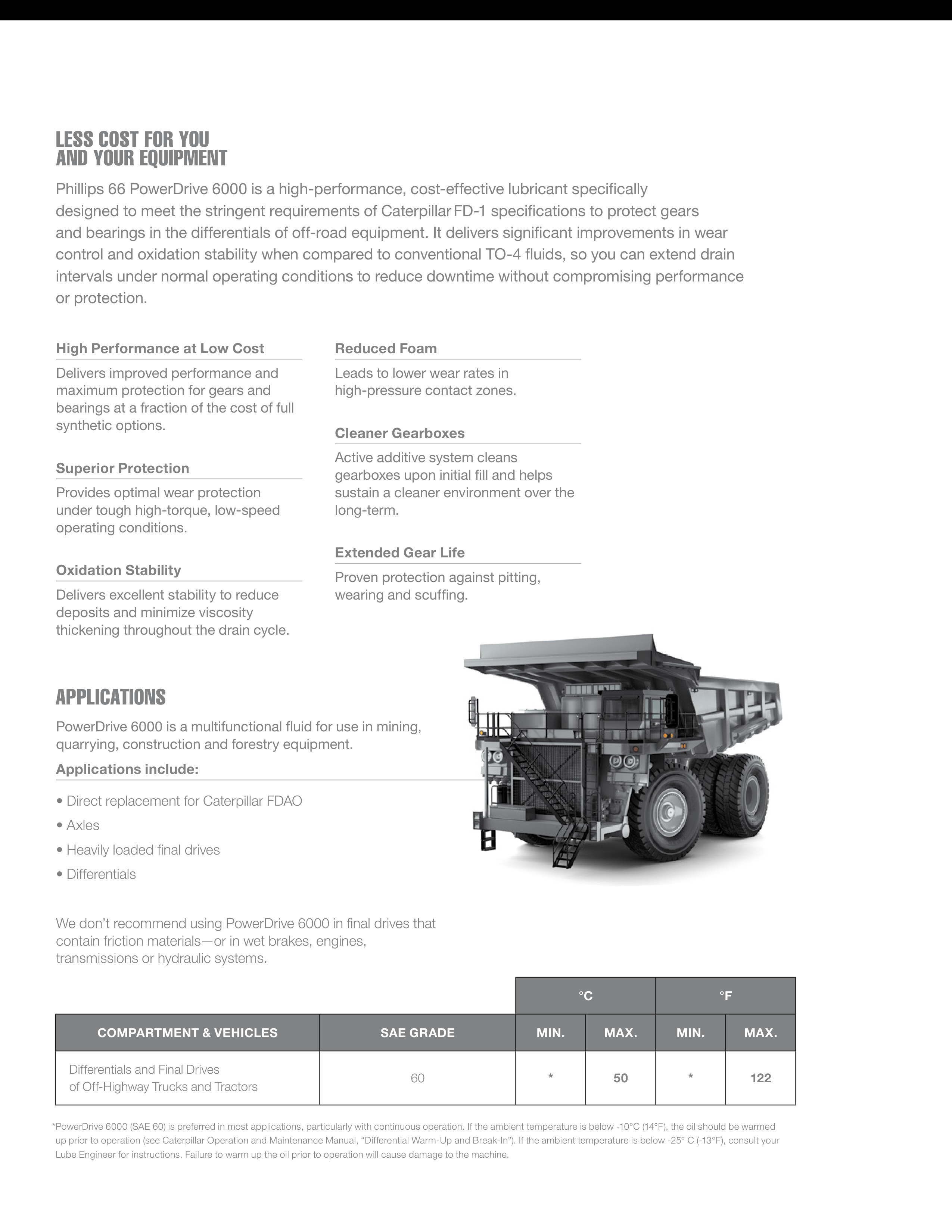

LESS COST FOR YOU
AND YOUR EQUIPMENT
APPLICATIONS
PowerDrive 6000 is a multifunctional fluid for use in mining,
quarrying, construction and forestry equipment.
Applications include:
• Direct replacement for Caterpillar FDAO
• Axles
• Heavily loaded final drives
• Differentials
We don’t recommend using PowerDrive 6000 in final drives that
contain friction materials—or in wet brakes, engines,
transmissions or hydraulic systems.
Phillips 66 PowerDrive 6000 is a high-performance, cost-effective lubricant specifically
designed to meet the stringent requirements of Caterpillar
FD-1 specifications to protect gears
and bearings in the differentials of off-road equipment. It delivers significant improvements in wear
control and oxidation stability when compared to conventional TO-4 fluids, so you can extend drain
intervals under normal operating conditions to reduce downtime without compromising performance
or protection.
High Performance at Low Cost
Delivers improved performance and
maximum protection for gears and
bearings at a fraction of the cost of full
synthetic options.
Superior Protection
Provides optimal wear protection
under tough high-torque, low-speed
operating conditions.
Oxidation Stability
Delivers excellent stability to reduce
deposits and minimize viscosity
thickening throughout the drain cycle.
Reduced Foam
Leads to lower wear rates in
high-pressure contact zones.
Cleaner Gearboxes
Active additive system cleans
gearboxes upon initial fill and helps
sustain a cleaner environment over the
long-term.
Extended Gear Life
Proven protection against pitting,
wearing and scuffing.
